Seam Coating

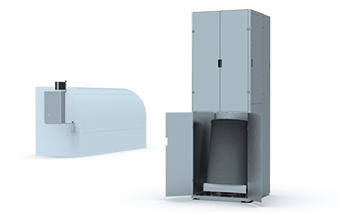

Universally usable for all automatic welding machines and a great variety of production capacity ranges. Compatible with majority of seam protection powders in quality BPAni and BPAfree. Compact design that fits common line layouts.

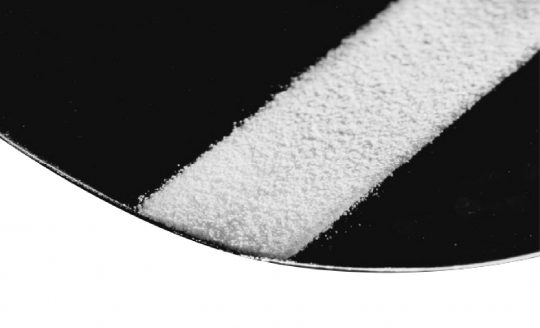

Powder stripe before fusing the particles.

Available product(s)

Can sizes
Production capacity
Seam coating width
Construction

- PowerCOAT iP
- 52 – 330 mm
  (< 52 mm on request)
- 10 – 100 m/min
- 6 – 13 mm (others on request)

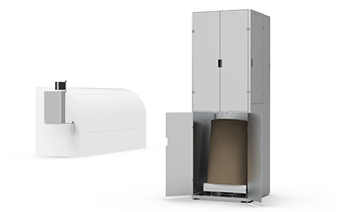

- 1 powder unit with integrated fresh powder drum evacuator and an external coating container, mounted to the welder

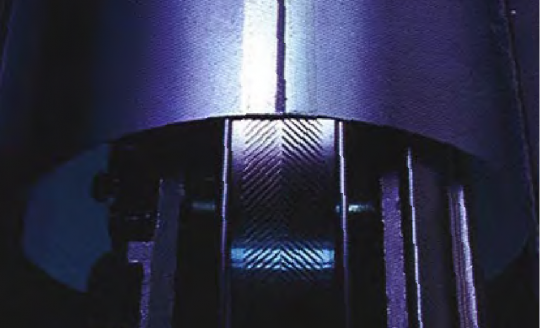

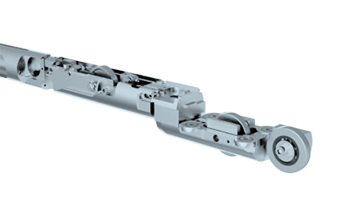

Wet lacquer seam coating units with roller for welded inside seams. Cost-effective units for coating seams of welded cans for food, beverage and aerosol use as well as general line containers. Every welder can be equipped with either a DRC lacquer arm or a powder arm. This interchangeability enables the can manufacturer to adjust production to meet market requirements.

Available product(s)

Can sizes
Production capacity
Seam coating width
Construction

- DRC
- 52 – 165 mm (others on request)
- up to 600 cpm
- 9 or 11 mm

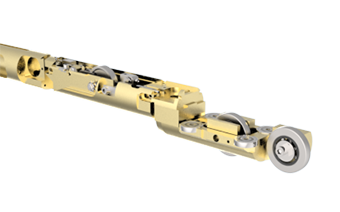

- 1 DRC lacquer arm with an electrical cabinet and lacquer supply tanks

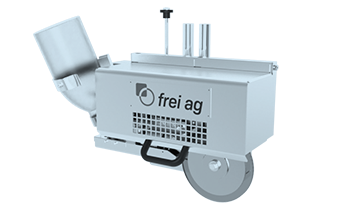

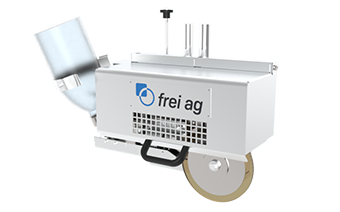

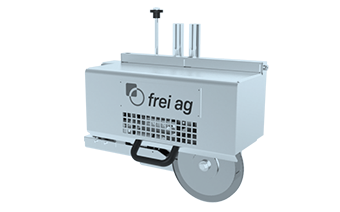

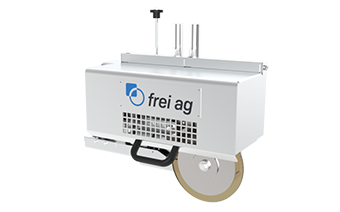

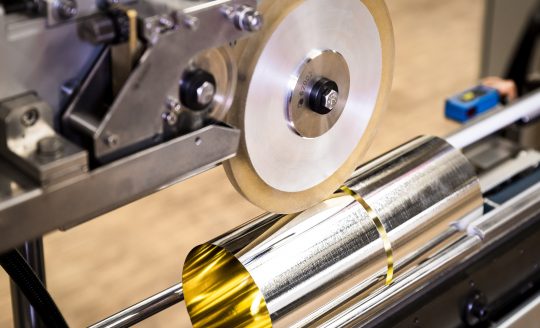

Outside roller coating – versatile unit for coating seams of welded cans for food, beverage and aerosol use as well as general line containers.

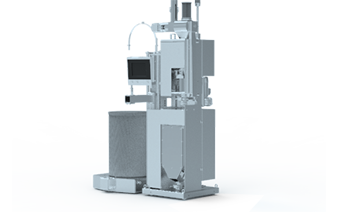

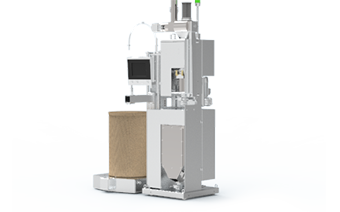

Compact system for all types of food and beverage cans. Basic version with inverted bottle. Full automatic system available as upgrade with many additional features.
